PRO2 HDMI OVER CAT6 EXTENDER 70M
Arc 4k edid poc loop optical
Requires ieee-568b cable termination standards and solid core cable. Use solid/ftp cat5/6 cables.
If you are running a cable 15 metres or more, make sure you use a SOLID CAT5/6 cable.
This product may not work with standard stranded ethernet cable. See related items for cabling that will work this product. 60m distance has been tested fine on F/UTP solid cat6 cable.
FYI: Most of the pre-made cat5/6 leads on the market are stranded cables not solid.
Compared with the HDC6M4K, this newer model offers extra features like CEC and ARC pass-through and Bi-directional IR.
Note: ARC needs to be enabled on both sides, the TV display and the AV Receiver, as these are disabled by default on devices!
HDMI2.0 18G 4K extender over single solid UTP cable with local loop out and CEC/ARC!
This compact and simple HDC6M4KARC is the easiest way to extend your 4K HDMI via a single solid CAT5e/6 cable up to 70m*!
FEATURES
HDMI2.0 extender, bandwidth 18Gbps, deep color up to 4K@60Hz 4:4:4-8bit
Support HLG, HDR10
ARC CEC pass-through
With the local HDMI loop out plus the IR, you can view and control your video source locally or remotely
Bi-directional power over cable feature, only one power supply is required on either the transmitter end or receiver end.
Support S/PDIF Toslink and PCM2.0 analog audio extraction
HDCP2.2/1.4 compliant
Transmit up to 70m under 4K@60Hz YUV4:4:4 and 4K@30Hz/ l080P over a single solid Cat5e/6 cable
EDID management
Wideband Bi-directional IR Pass-through, compatible with Foxtel IQ4!
Support LPCM 7.1CH, Dolby True HD, DTS-X, DTS-HD master, and Dolby Atmos audio
Support 4K@60Hz downscale to 1080P
HDMI audio sampling rate up to 32-96KHz, 16-24bit
Support Micro USB port to upgrade new firmware for future
Compact size and easy mount with the rack mount ears supplied
ARC supports audio PCM/Dobly/DTS,48KHZ, supports up to 5.1CH audio
SPECIFICATIONS
Operating Temperature Range: -5 to 40' C ( 23 to 104°F)
Operating Humidity Range: 5 to 90%RH (No Condensation)

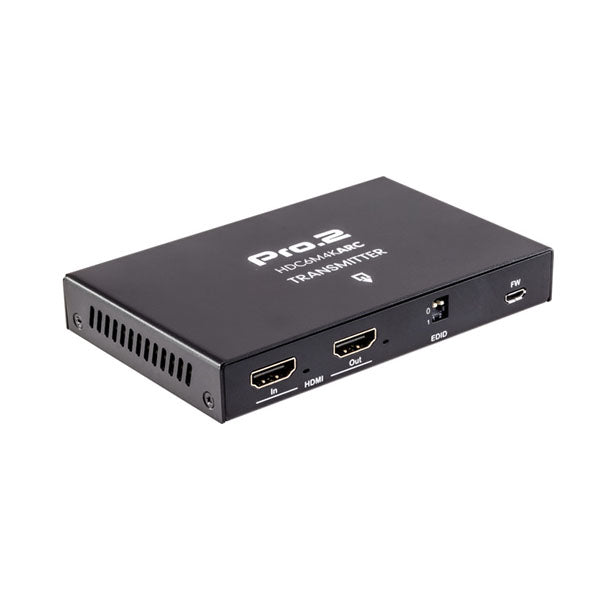

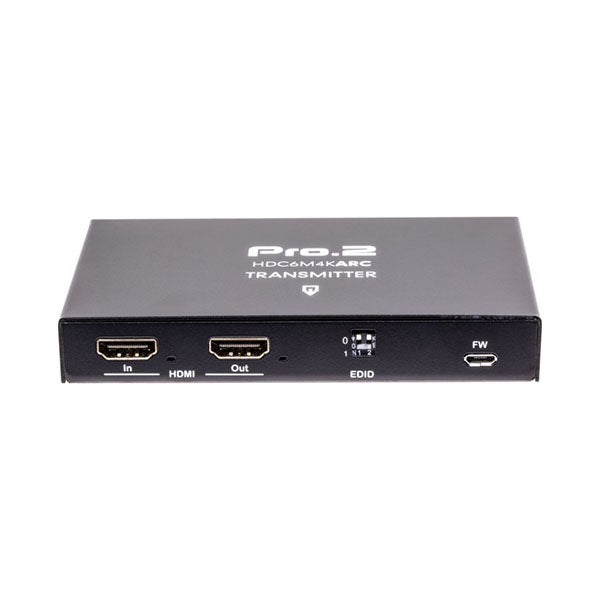

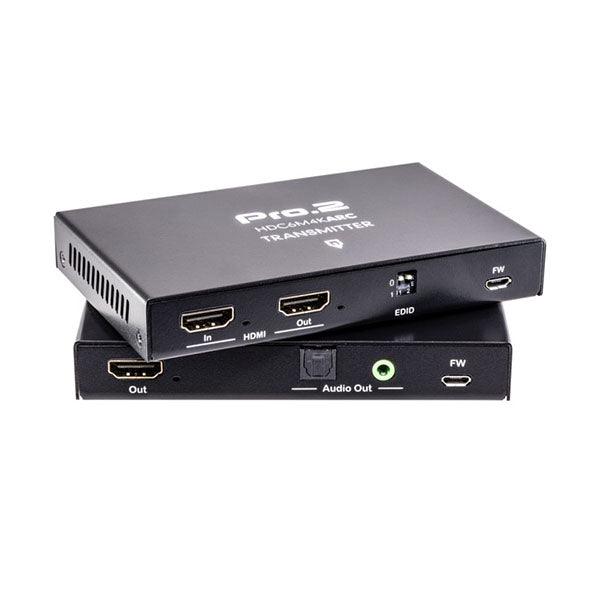

Transmitter Connections: HDMI input x 1, HDMI loop out x 1, Power DC x 1, EDID x1

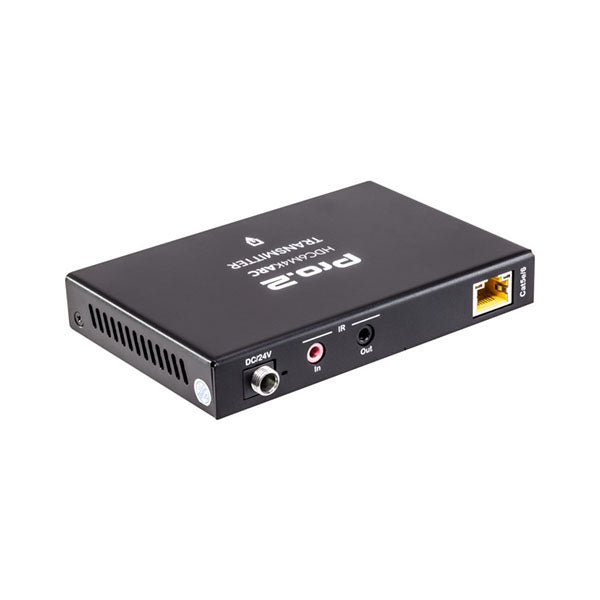

IR TX input x 1, IR RX output x 1, Micro USB socket x1, RJ45 x1

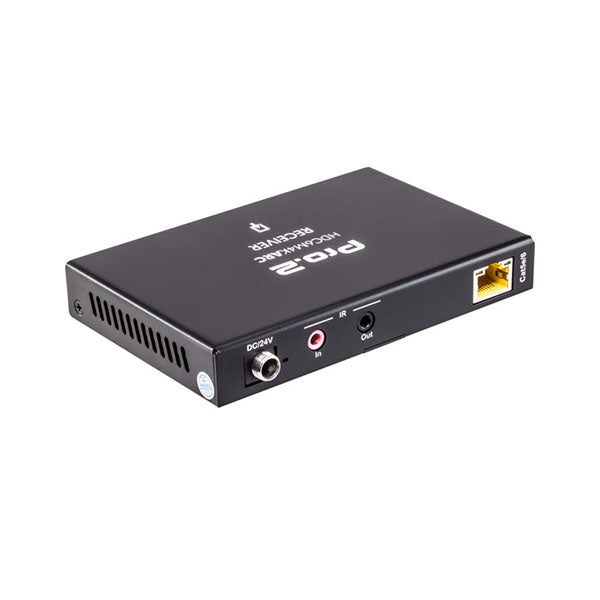

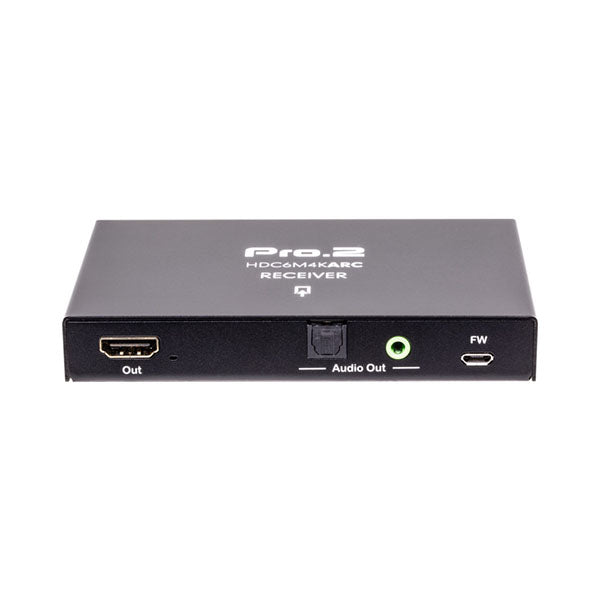

Receiver Connections: HDMI output x 1, RJ45 x1, Micro USB socket x 1, Power DC x 1

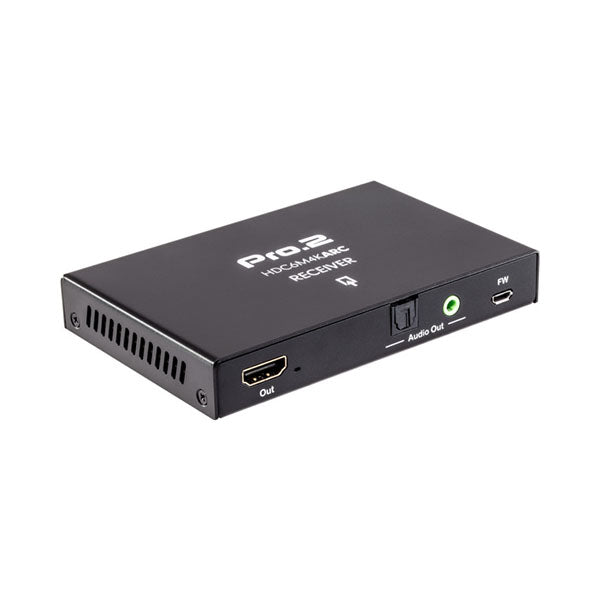

IR RX input x 1, IR TX output x 1, Toslink x 1, 3.5mm Audio x 1
Output Resolution: 4k@ 60hz YUV4:4:4/ 4k@ 30HZ/1080P/1080i?/720P/576P/480P
Bandwidth: Up to 18Gbps 600MHz
Colour Space: RGB, YUV 4:4:4, 4:2:2, 4:2:0
HDCP: 1.4/2.2
Deep Colour: 8-bit, 10-bit, 12- bit
Audio Format Supported : DTS-HD Master Audio , Dolby True HD, PCM etc.
Output Video Signal: HDMI
HDMI Cable Length to TX/RX: 4K@60Hz: input/output 5M Max, 4K@30Hz: input/output 8M Max
1080P: input/output 10M Max
Dimension (LxWxH) TX: L120.2mm x W78.3mm x H18 mm;RX: L120.2mm x W78.3 mm x H18 mm
Power supply: DC 24V1A Power supply
Power consumption: 12W (MAX)
Transmission Distance: Up to 70m under 4 K@60 Hz YUV4:4:4 and 4K@30Hz/1080P
Net Weight: TX:240g; RX: 240g
*PLEASE NOTE: 70m distance is under perfect transmission conditions including straight cable runs with no bends, kinks, electrical interference, patch panels, or wall outlets. Use CAT6 solid core cable for the best results.
EDID 2 PIN DIP SWITCH ON THE TRANSMITTER:
00 Default 4K60-YUV420-2CH
01 Copy EDID from the far-end display
10 Copy EDID from the loop out display
11 Default 4K60-YUV444-5.1CH

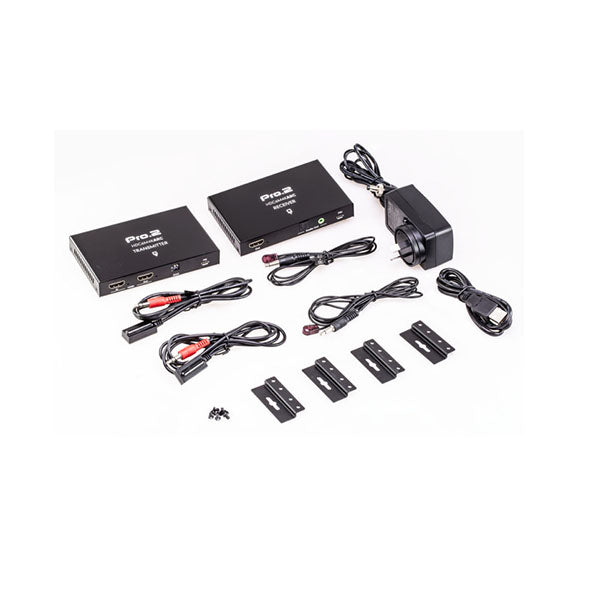

PACKAGE CONTENTS
1 x Transmitter
1 x Receiver
2 x IR emitter
2 x IR receiver
1 x DC24V 1A power supply
4 x Rack mount ears
1 x Manual
